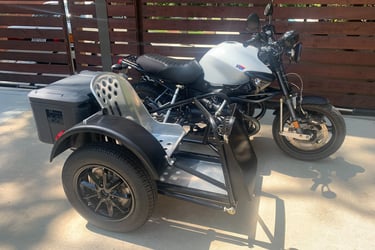

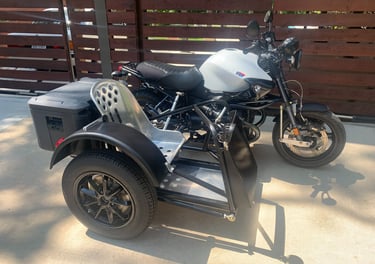

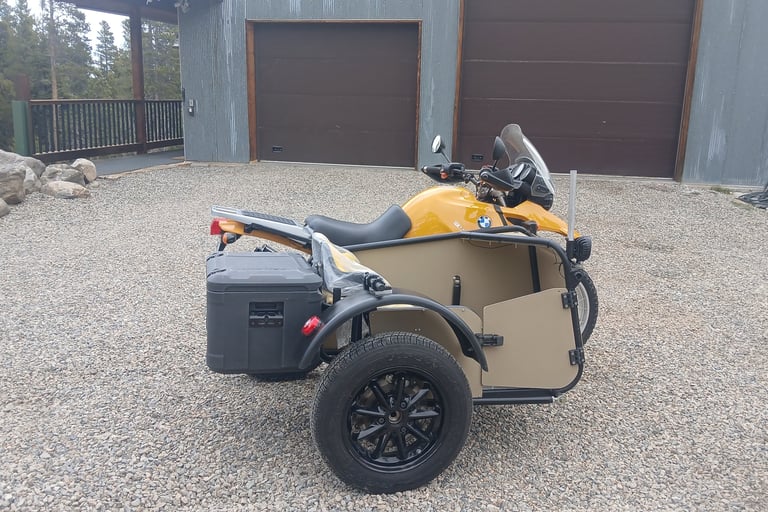

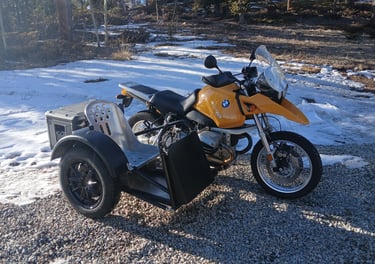

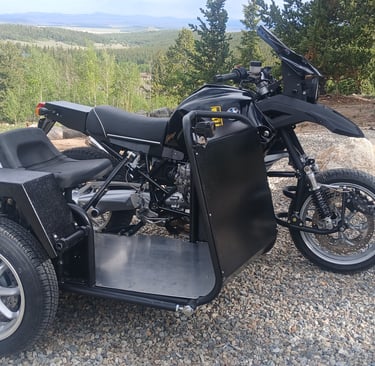

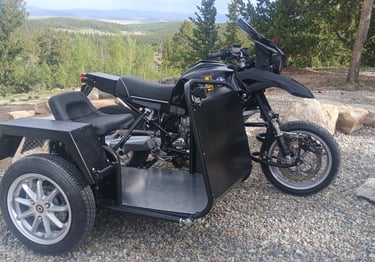

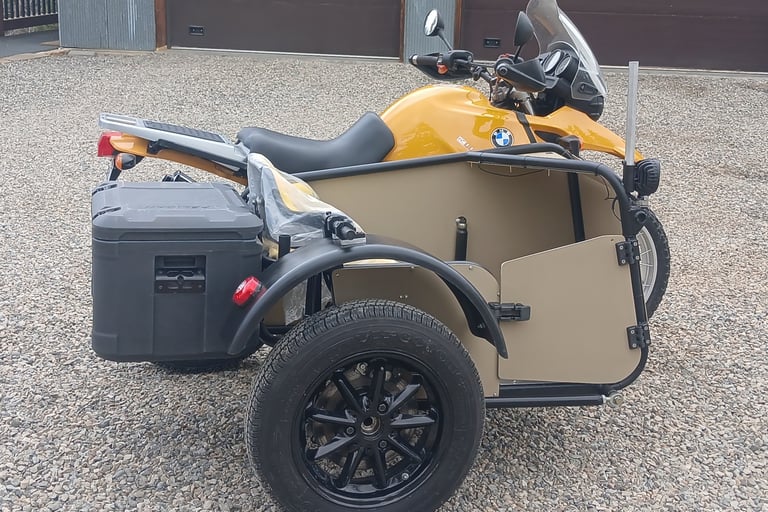

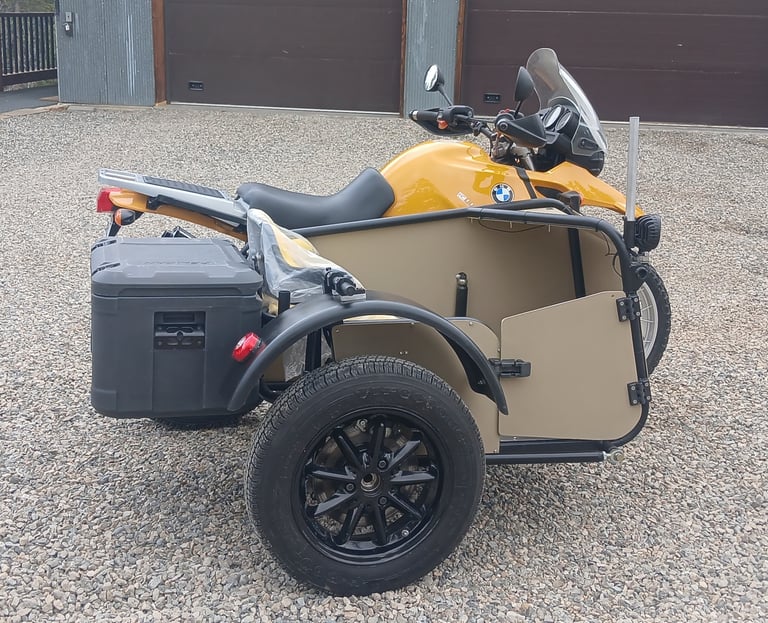

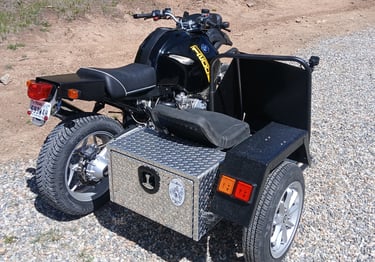

Our Outfits

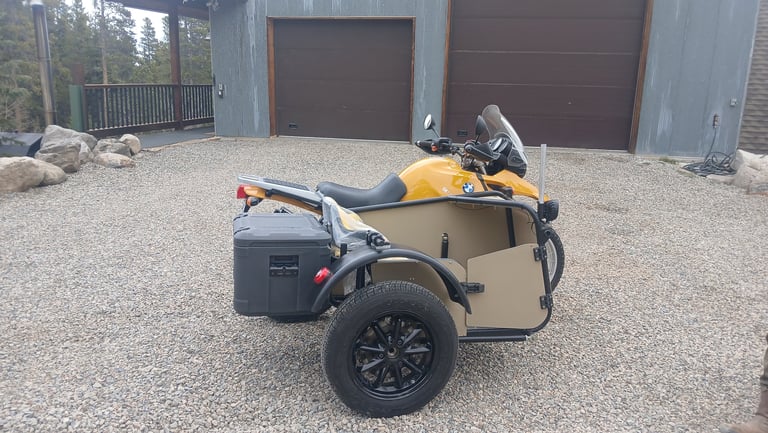

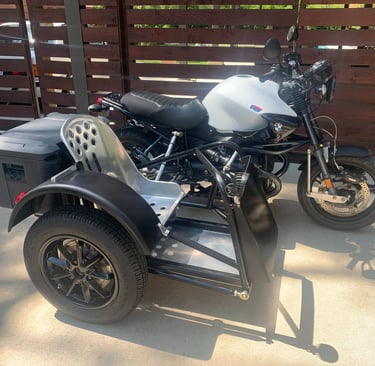

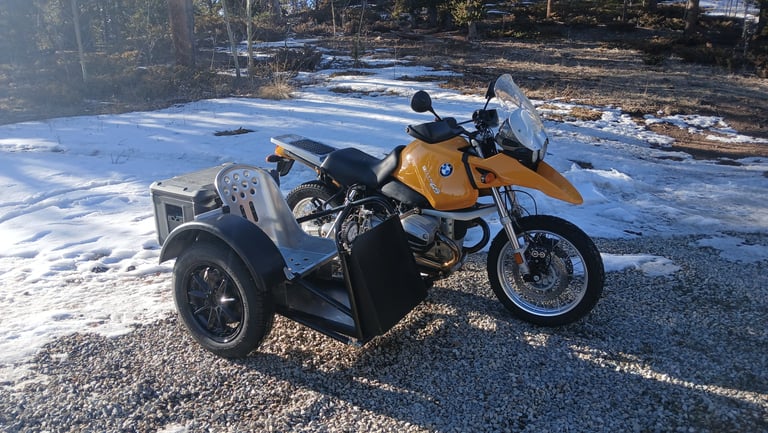

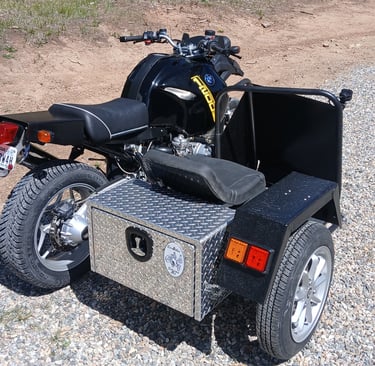

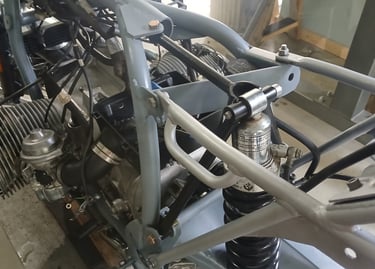

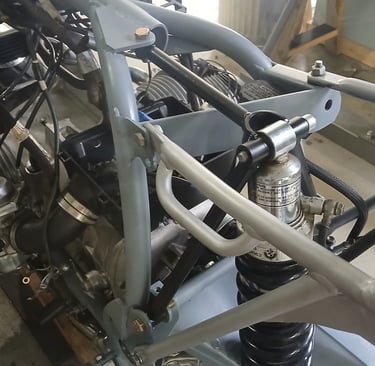

Our outfits will adopt the same optimized modular platform, and use a homogenized radius arm and trailing link solution providing the most efficient design of tying the sidecars loads directly back to the motorcycle, this together with the spaceframe structure assures the lightest and strongest possible solution. Lateral links ensure braking, accelerating, and cornering loads are all managed seamlessly between sidecar and motorcycle without fear of fatigue or stress failure.

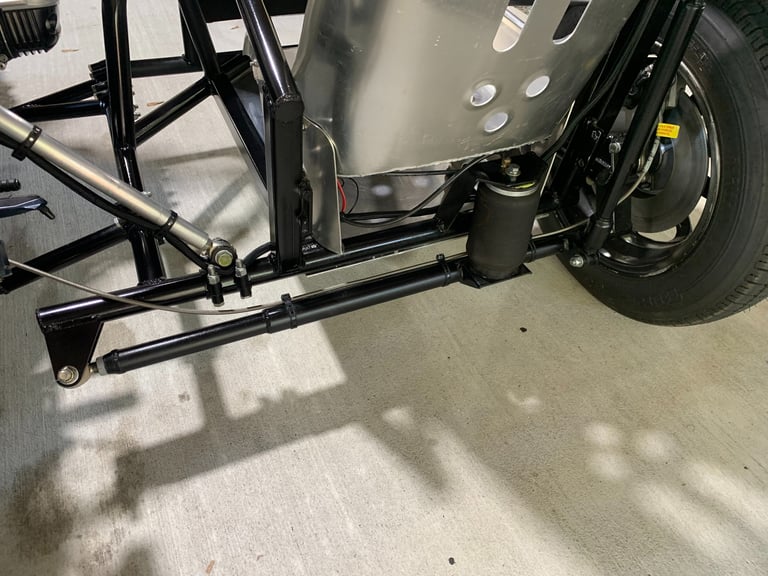

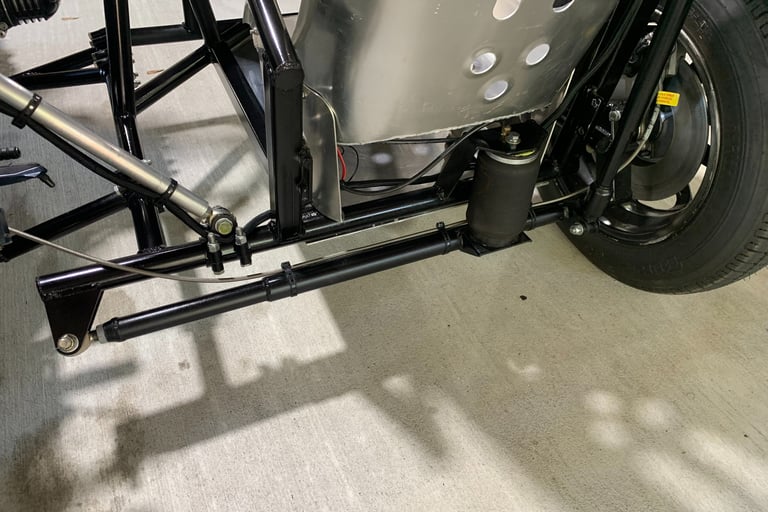

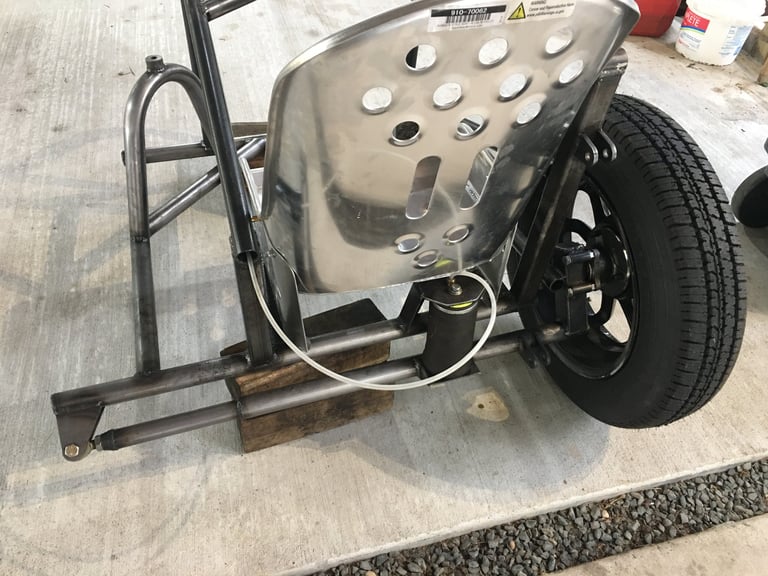

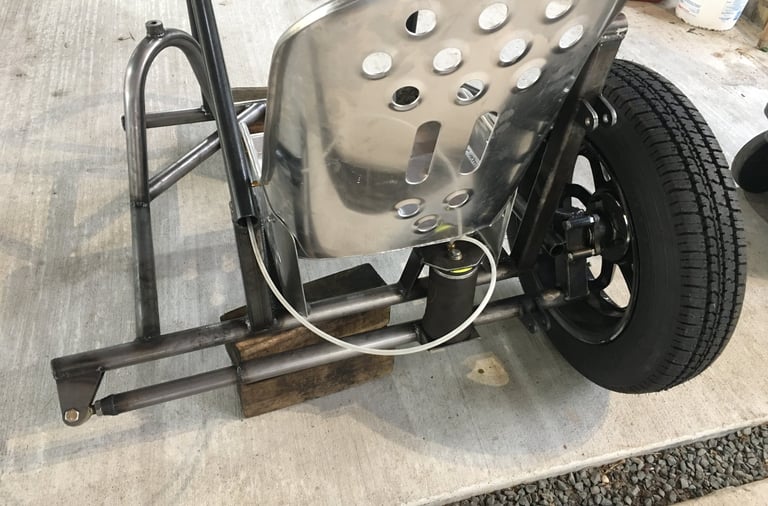

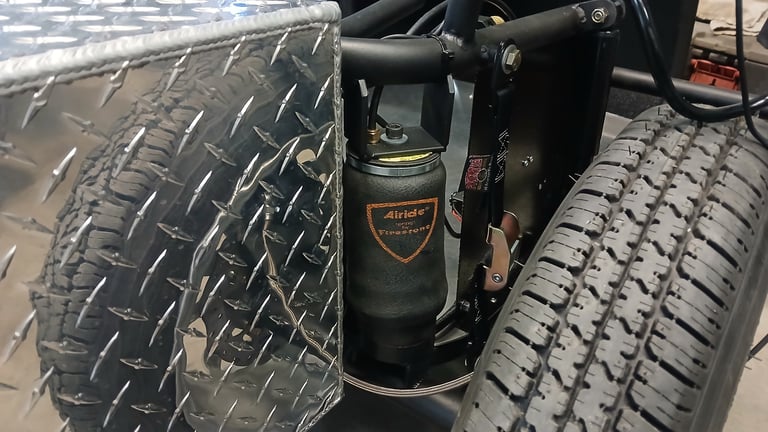

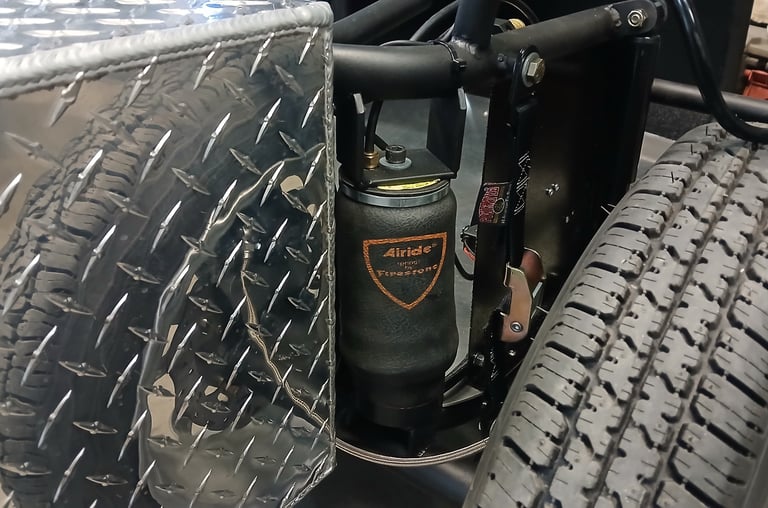

Our unique suspension system combines active on-the-fly trim control to instantly adjust for road camber changes, whilst offering a cadillac feel ride to the passenger, and reduces lateral load imposed on the motorcycle. We have research to ensure the ideal formular of sidecar lead, track width and lean out, etc, is achieved.

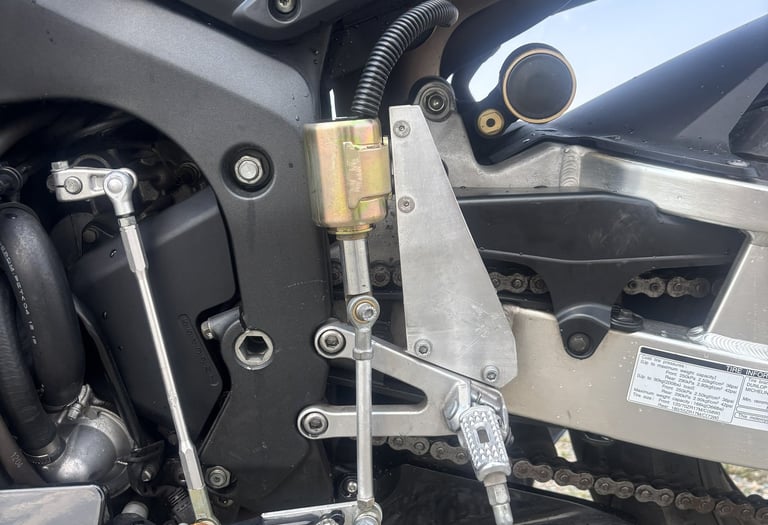

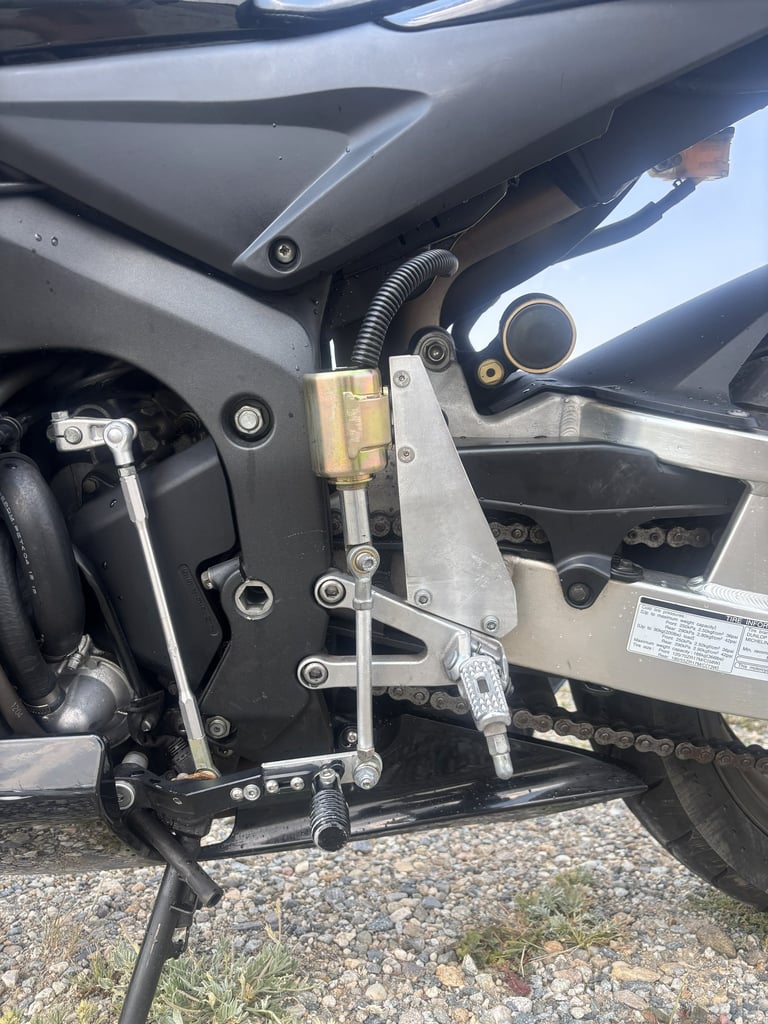

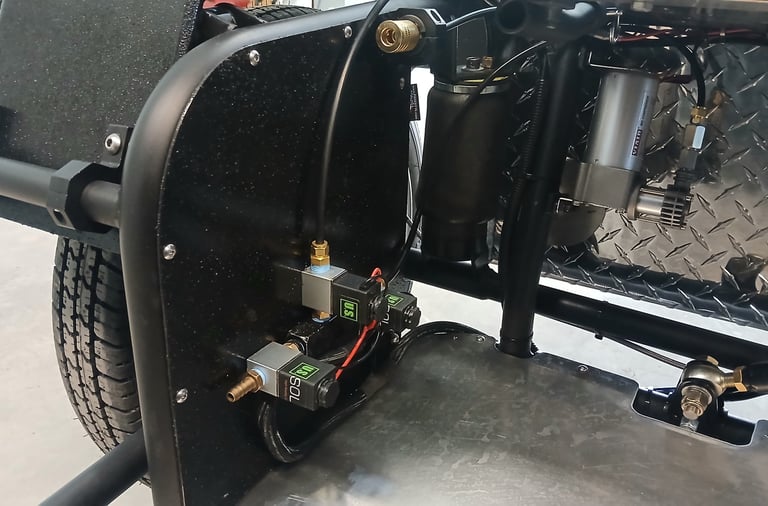

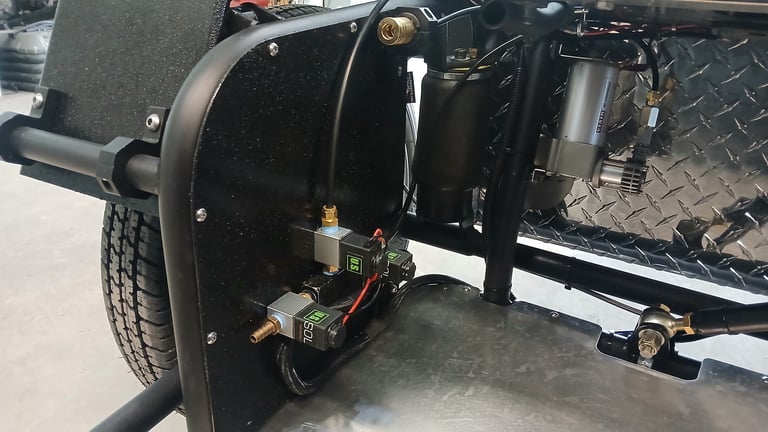

Our outfits include proportionally adjustable (to suit the payload) Brembo brake, operated in sync by the rear brake. An on-board 12v air compressor that can be used for a multitude of applications, and LED lighting. All the features are maintained within an exceptionally light weight.

Offroad capability is assured by the massive suspension travel afforded by the air bag system, generous ground clearance, and front and rear recovery points.

Best of all our outfits are fully customizable to suit client needs including: Passenger seating options, storage provision, fuel cell, auxiliary batters, custom lighting, winch, etc.

Note: As motorcycles (most anyway) where not intended for sidecars, trail reduction is strongly recommended to allow ease of steering this can be achieved with our leading link forks, or for those with BMW tele-levers forks with our trail correction hardware design.

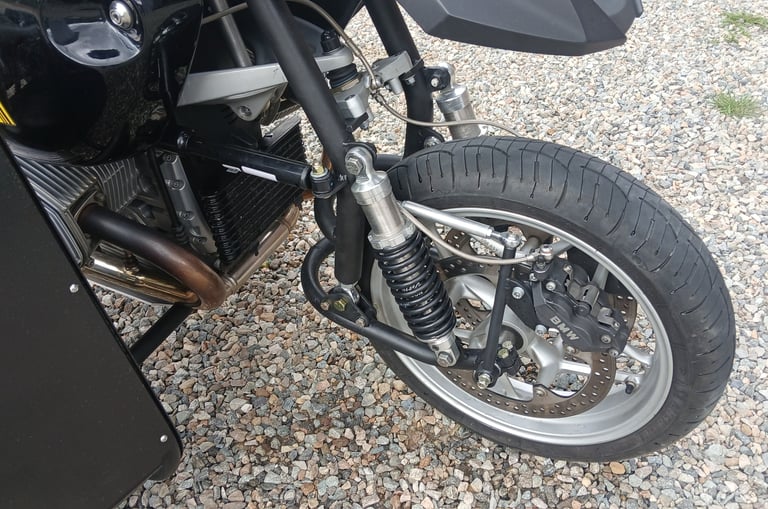

Our Leading Links

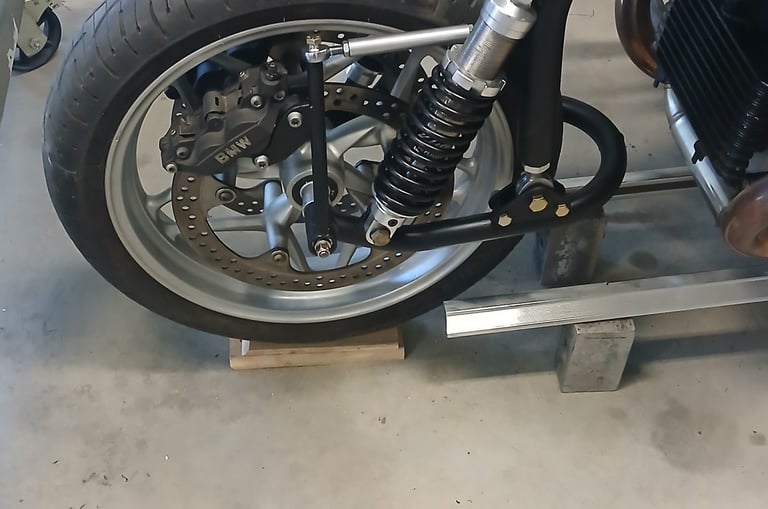

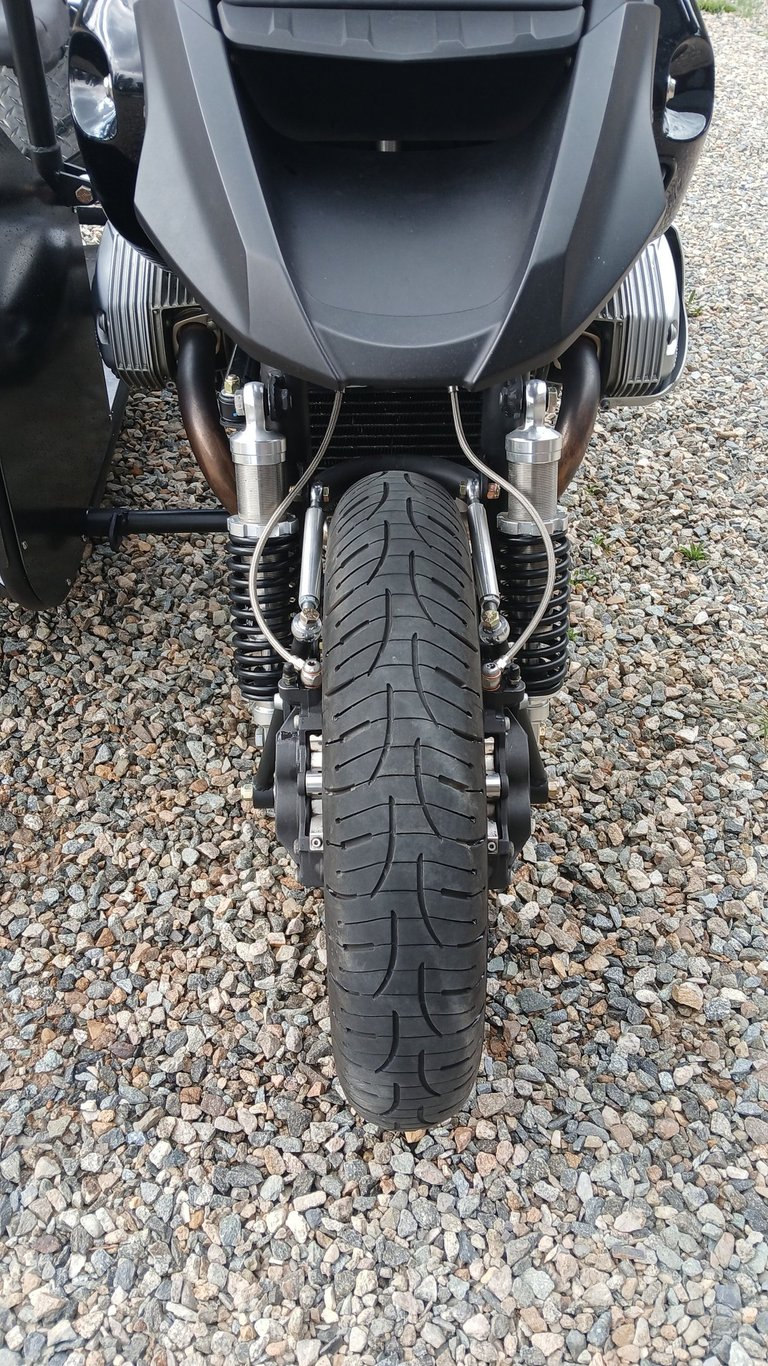

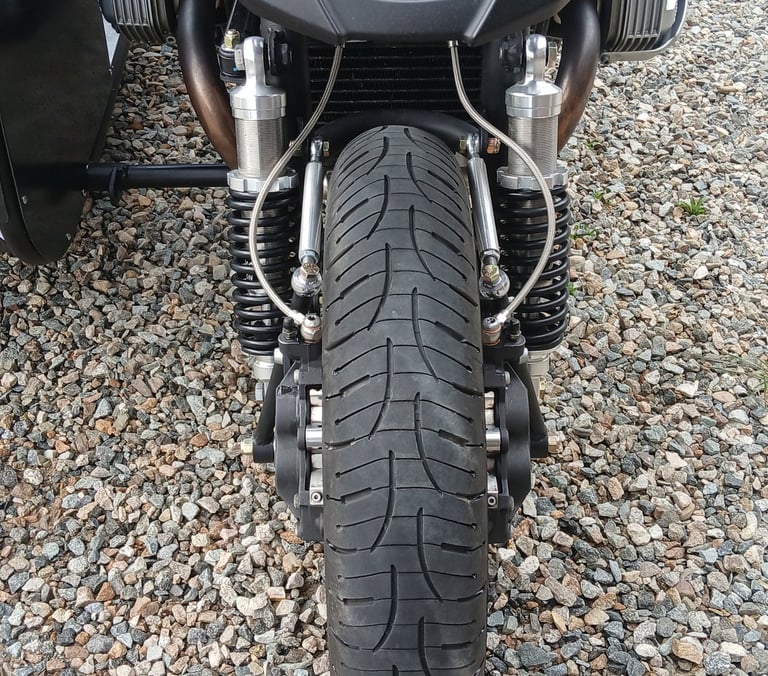

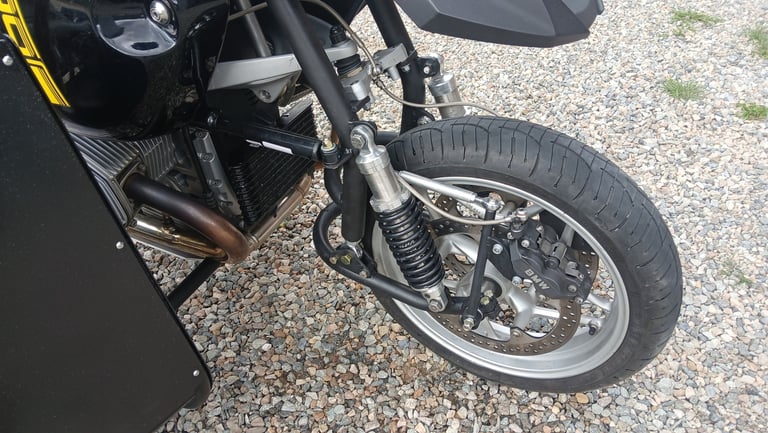

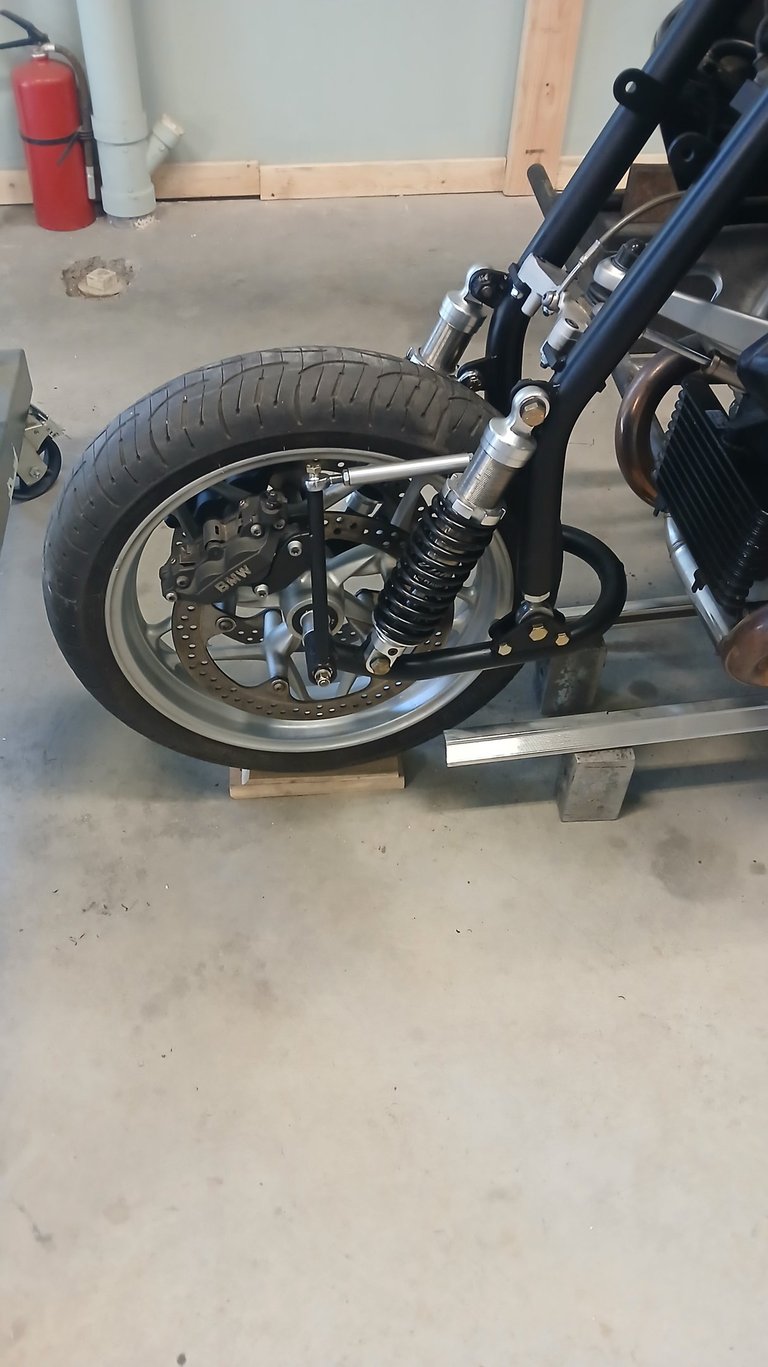

Leading link (LL) forks are IMO by far the best way to reduce trail, and avoid the need for gorilla muscles to steer your outfit. Conventional and tele-lever forks with typical trail of 4" - 5" and with a typical tubing wall of just 1/16", whilst ideal for solo's, will endure enormous bending and twisting loads with any outfit, and may well fail at some stage. Our leading links reduce trail to between 1-3/4" - 2-3/4" reducing the steering effort and therefore bending and twisting loads on the forks.

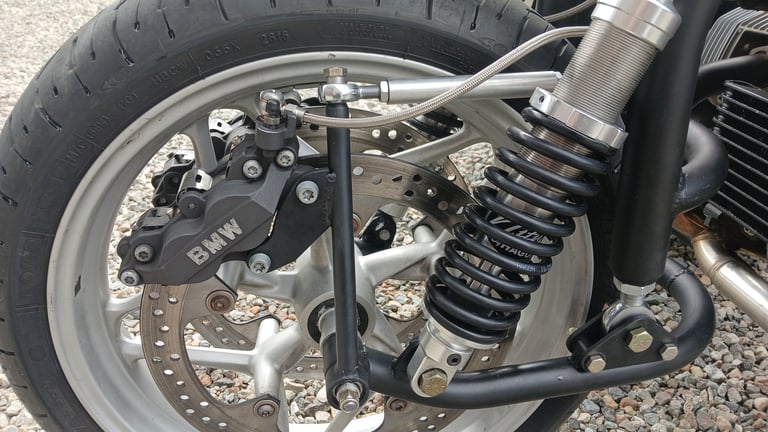

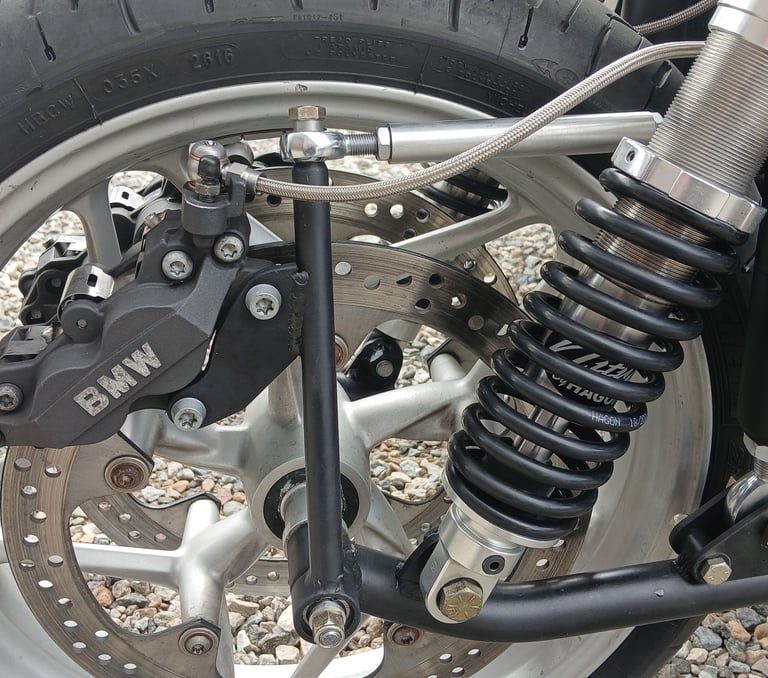

Our LL's include floating brake calipers eliminating dive and rise under braking, easily replaceable / maintainable high strength rod end pivots, and choice of shocks to maintaining or improve suspension stroke. Best of all our LL's have adjustable trail by means of changeable pivot mounts. Trail amount is dependent on tire choice, outfit weight, type of riding and is therefore very unique to the clients needs. Too much trail means high effort and loads, too little trail means stability issues at speed.

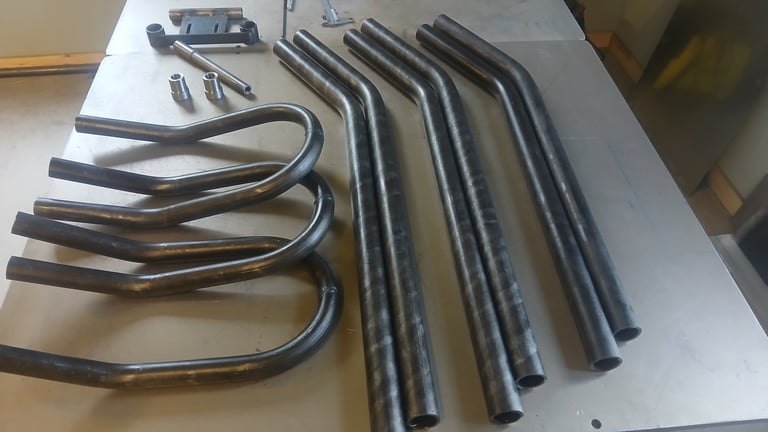

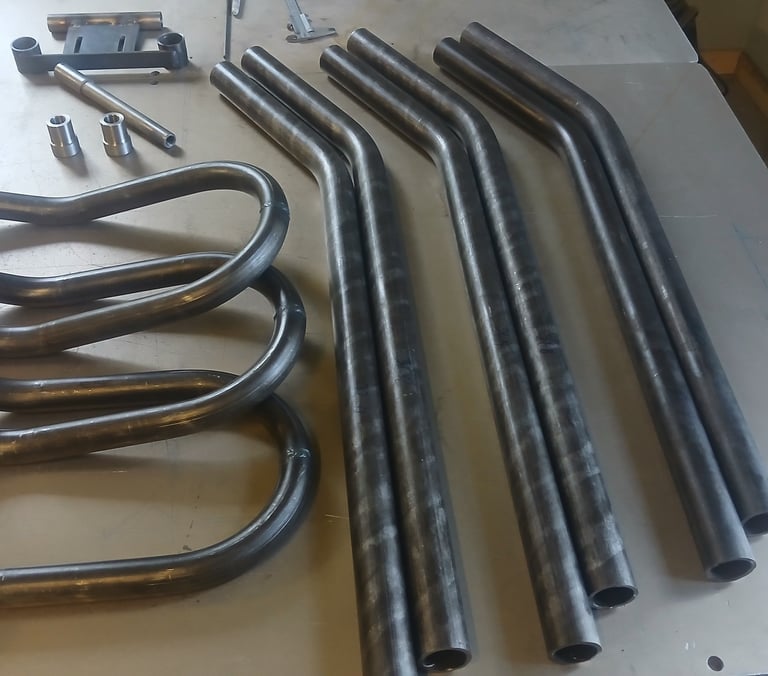

All our LL's use DOM tubing, cold bent on our hydraulic bender, and are TIG welded on our build fixture to ensure trueness is assured.
